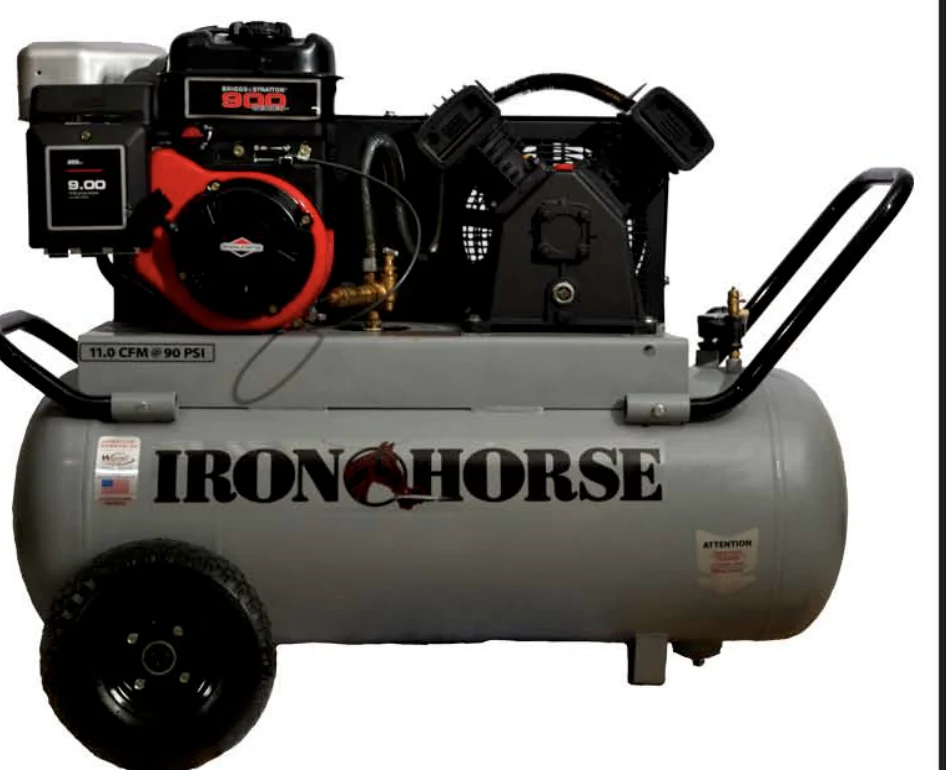

Iron Horse Air Compressor With Electric Start 6 Horse Power Briggs And Stratton Engine
- CFM / PSI: 11.0 CFM @ 90 PSI
- HorsePower: 6.0 Briggs And Stratton
- Electric Start
- Pump Material Solid Cast Iron
- Pump Type Singe Stage
- Oil Lubricated
- Tank Outlet 1/4"
- Max Rated PSI: 150
- Air Tank Capacity (Gal): 25
- Reliable 6 HP Briggs And Stratton
- Starts Easy, Works Hard And Runs Quiet
- Auto Idel Saves Fuel
- Cast Iron Twin Cylinder Pump Durable And Dependable Operates Smoothly
- Tough Enough For Professional Use And Large Tools Up To 11 CFM
- Sturdy 25 Gallon Horizontal Tank Handles On Each End For Ease Of Transport
- Pneumatic Wheels Dampen Vibration
- Top Mounted Pressure Gauge Protected Location Is Still Easy To See
- Rugged 2 And 3 Cylinder Cast Iron Compressors
- Individual And Removable Cylinders For Smoother And Cooler Operation
- High Efficiency Reed Valves For Maximum Performance
- Efficient Heat Removal From Fly Wheel For Cooler Running And Longer Life
- Sturdy Belt Guard
- 1 Year Factory Warranty
- TMI120000

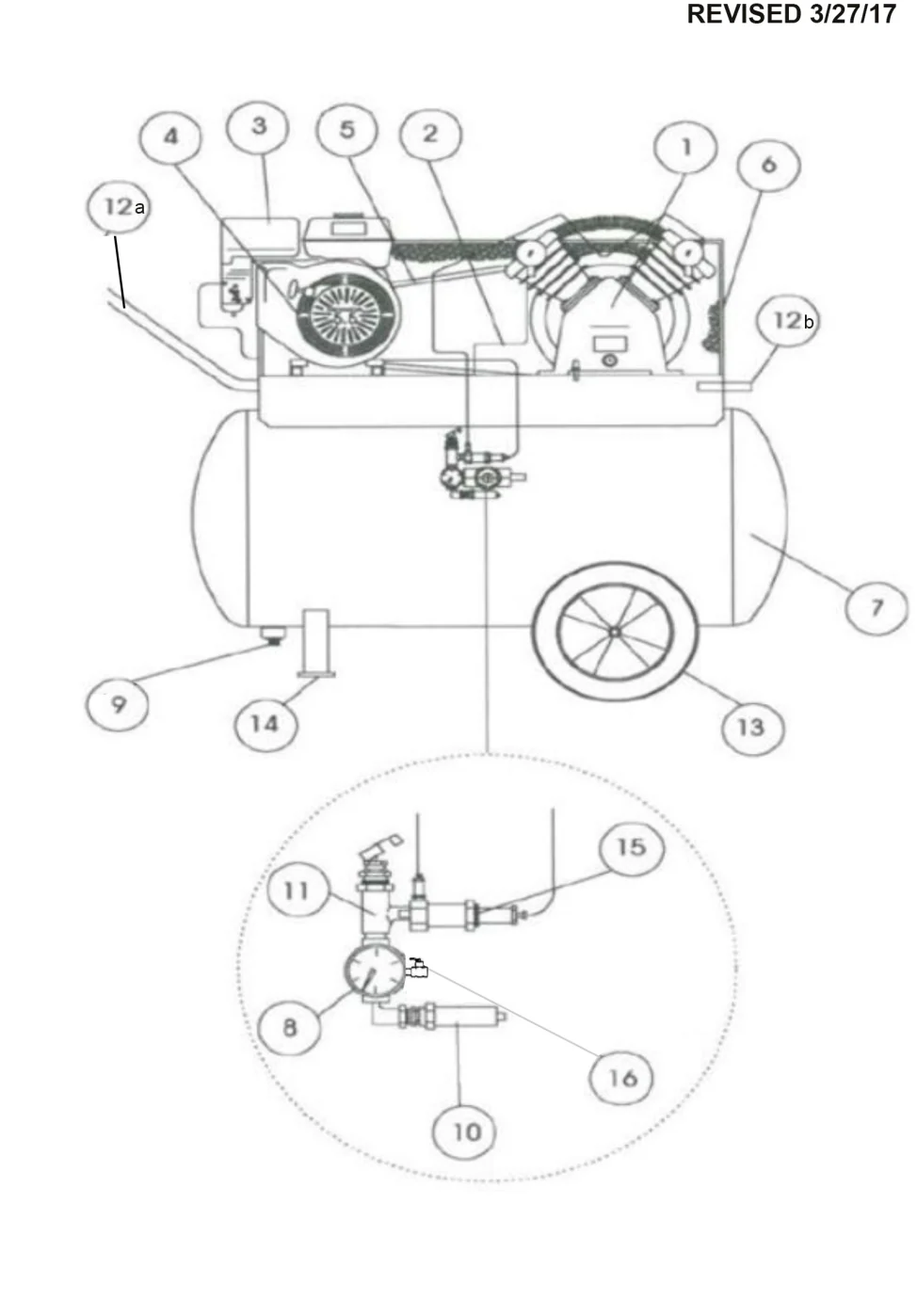

| Item | Description | Product Code |
| 1 | Compressor w/ Flywheel | CC2065 |
| 2 | Discharge Tube | TU-20-AL |
| 3 | Engine | BS-12T4170118F8-C1040 |
| 4 | Pulley - Engine | MA38X3/4 |
| 5 | V-Belt | 4L540 |
| 6 | Belt Guard | TT-GUARD |
| 7 | Air Receiver (tank) | 25HEPORT-G |
| 8 | Pressure Gauge | PG200-2.5R |
| 9 | Drain Cock | 240-B |
| 10 | Safety Valve | PSV1/4-150 |
| 11 | Unloader | NRP-A-95-125 |
| 12 | Handle (Long) | PT-HANDLE-25L |
| Handle (Short) | PT-HANDLE-24HS | |
| 13 | Wheel | PT-WHEEL-FF |
| 14 | Vibration Dampner | TT-FOOT |
| 15 | Engine Control w/ Cable | TCLP-36-0817 |
| 16 | Regulator | R202-1/4 |
| 17 | Pressure Gauge (Regulator) | PT0160 |
| 18 | Coupler | CO1/2 |
| Hose Assembly | TT-HOSE | |
| Eagle Compressor Oil | EAOIL10 |

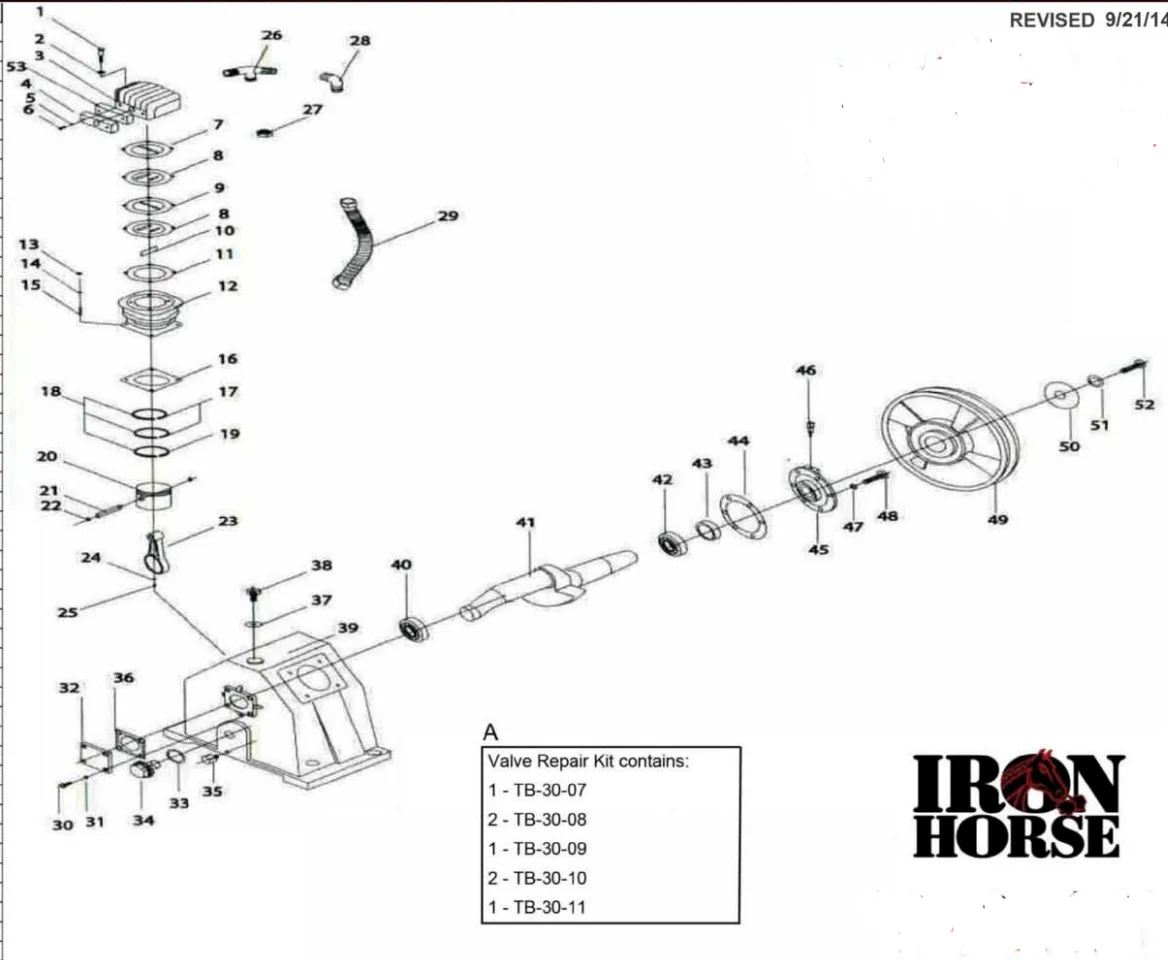

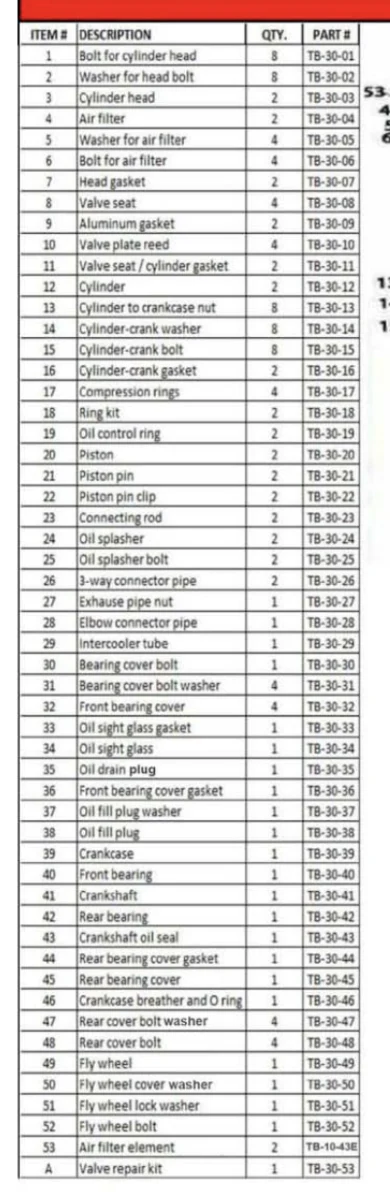

| Item | Description | Quantity | Part Number |
| 1 | Bolt for Cylinder Head | 8 | TB-30-01 |
| 2 | Washer for Head Bolt | 8 | TB-30-02 |
| 3 | Cylinder Head | 2 | TB-30-03 |
| 4 | Air Filter | 2 | TB-30-04 |
| 5 | Washer for Air Filter | 4 | TB-30-05 |
| 6 | Bolt for Air Filter | 4 | TB-30-06 |
| 7 | Head Gasket | 2 | TB-30-07 |
| 8 | Valve Seat | 4 | TB-30-08 |
| 9 | Aluminum Gasket | 2 | TB-30-09 |
| 10 | Valve Plate Reed | 4 | TB-30-10 |
| 11 | Valve Seat / Cylinder Gasket | 2 | TB-30-11 |
| 12 | Cylinder | 2 | TB-30-12 |
| 13 | Cylinder to Crankcase Nut | 8 | TB-30-13 |
| 14 | Cylinder-Crank Washer | 8 | TB-30-14 |
| 15 | Cylinder-Crank Bolt | 8 | TB-30-15 |
| 16 | Cylinder-Crank Gasket | 2 | TB-30-16 |
| 17 | Compression Rings | 4 | TB-30-17 |
| 18 | Ring Kit | 2 | TB-30-18 |
| 19 | Oil Control Ring | 2 | TB-30-19 |
| 20 | Piston | 2 | TB-30-20 |
| 21 | Piston Pin | 2 | TB-30-21 |
| 22 | Piston Pin Clip | 2 | TB-30-22 |
| 23 | Connecting Rod | 2 | TB-30-23 |
| 24 | Oil Splasher | 2 | TB-30-24 |
| 25 | Oil Splasher Bolt | 2 | TB-30-25 |
| 26 | 3-Way Connector Pipe | 2 | TB-30-26 |
| 27 | Exhaust Pipe Nut | 1 | TB-30-27 |
| 28 | Elbow Connector Pipe | 1 | TB-30-28 |
| 29 | Intercooler Tube | 1 | TB-30-29 |
| 30 | Bearing Cover Bolt | 1 | TB-30-30 |
| 31 | Bearing Cover Bolt Washer | 4 | TB-30-31 |
| 32 | Front Bearing Cover | 4 | TB-30-32 |
| 33 | Oil Sight Glass Gasket | 1 | TB-30-33 |
| 34 | Oil Sight Glass | 1 | TB-30-34 |
| 35 | Oil Drain Plug | 1 | TB-30-35 |
| 36 | Front Bearing Cover Gasket | 1 | TB-30-36 |
| 37 | Oil Fill Plug Washer | 1 | TB-30-37 |
| 38 | Oil Fill Plug | 1 | TB-30-38 |
| 39 | Crankcase | 1 | TB-30-39 |
| 40 | Front Bearing | 1 | TB-30-40 |
| 41 | Crankshaft | 1 | TB-30-41 |
| 42 | Rear Bearing | 1 | TB-30-42 |
| 43 | Crankshaft Oil Seal | 1 | TB-30-43 |
| 44 | Rear Bearing Cover Gasket | 1 | TB-30-44 |
| 45 | Rear Bearing Cover | 1 | TB-30-45 |
| 46 | Crankcase Breather and O Ring | 1 | TB-30-46 |
| 47 | Rear Cover Bolt Washer | 4 | TB-30-47 |
| 48 | Rear Cover Bolt | 4 | TB-30-48 |
| 49 | Flywheel | 1 | TB-30-49 |
| 50 | Flywheel Cover Washer | 1 | TB-30-50 |
| 51 | Flywheel Lock Washer | 1 | TB-30-51 |
| 52 | Flywheel Bolt | 1 | TB-30-52 |
| 53 | Air Filter Element | 2 | TB-10-43E |
| A | Valve Repair Kit | 1 | TB-30-53 |
$1,622.05
Iron Horse Air Compressor With Electric Start 6 Horse Power Briggs And Stratton Engine—
$1,622.05
Description
- CFM / PSI: 11.0 CFM @ 90 PSI
- HorsePower: 6.0 Briggs And Stratton
- Electric Start
- Pump Material Solid Cast Iron
- Pump Type Singe Stage
- Oil Lubricated
- Tank Outlet 1/4"
- Max Rated PSI: 150
- Air Tank Capacity (Gal): 25
- Reliable 6 HP Briggs And Stratton
- Starts Easy, Works Hard And Runs Quiet
- Auto Idel Saves Fuel
- Cast Iron Twin Cylinder Pump Durable And Dependable Operates Smoothly
- Tough Enough For Professional Use And Large Tools Up To 11 CFM
- Sturdy 25 Gallon Horizontal Tank Handles On Each End For Ease Of Transport
- Pneumatic Wheels Dampen Vibration
- Top Mounted Pressure Gauge Protected Location Is Still Easy To See
- Rugged 2 And 3 Cylinder Cast Iron Compressors
- Individual And Removable Cylinders For Smoother And Cooler Operation
- High Efficiency Reed Valves For Maximum Performance
- Efficient Heat Removal From Fly Wheel For Cooler Running And Longer Life
- Sturdy Belt Guard
- 1 Year Factory Warranty
- TMI120000
| Item | Description | Product Code |
| 1 | Compressor w/ Flywheel | CC2065 |
| 2 | Discharge Tube | TU-20-AL |
| 3 | Engine | BS-12T4170118F8-C1040 |
| 4 | Pulley - Engine | MA38X3/4 |
| 5 | V-Belt | 4L540 |
| 6 | Belt Guard | TT-GUARD |
| 7 | Air Receiver (tank) | 25HEPORT-G |
| 8 | Pressure Gauge | PG200-2.5R |
| 9 | Drain Cock | 240-B |
| 10 | Safety Valve | PSV1/4-150 |
| 11 | Unloader | NRP-A-95-125 |
| 12 | Handle (Long) | PT-HANDLE-25L |
| Handle (Short) | PT-HANDLE-24HS | |
| 13 | Wheel | PT-WHEEL-FF |
| 14 | Vibration Dampner | TT-FOOT |
| 15 | Engine Control w/ Cable | TCLP-36-0817 |
| 16 | Regulator | R202-1/4 |
| 17 | Pressure Gauge (Regulator) | PT0160 |
| 18 | Coupler | CO1/2 |
| Hose Assembly | TT-HOSE | |
| Eagle Compressor Oil | EAOIL10 |
| Item | Description | Quantity | Part Number |
| 1 | Bolt for Cylinder Head | 8 | TB-30-01 |
| 2 | Washer for Head Bolt | 8 | TB-30-02 |
| 3 | Cylinder Head | 2 | TB-30-03 |
| 4 | Air Filter | 2 | TB-30-04 |
| 5 | Washer for Air Filter | 4 | TB-30-05 |
| 6 | Bolt for Air Filter | 4 | TB-30-06 |
| 7 | Head Gasket | 2 | TB-30-07 |
| 8 | Valve Seat | 4 | TB-30-08 |
| 9 | Aluminum Gasket | 2 | TB-30-09 |
| 10 | Valve Plate Reed | 4 | TB-30-10 |
| 11 | Valve Seat / Cylinder Gasket | 2 | TB-30-11 |
| 12 | Cylinder | 2 | TB-30-12 |
| 13 | Cylinder to Crankcase Nut | 8 | TB-30-13 |
| 14 | Cylinder-Crank Washer | 8 | TB-30-14 |
| 15 | Cylinder-Crank Bolt | 8 | TB-30-15 |
| 16 | Cylinder-Crank Gasket | 2 | TB-30-16 |
| 17 | Compression Rings | 4 | TB-30-17 |
| 18 | Ring Kit | 2 | TB-30-18 |
| 19 | Oil Control Ring | 2 | TB-30-19 |
| 20 | Piston | 2 | TB-30-20 |
| 21 | Piston Pin | 2 | TB-30-21 |
| 22 | Piston Pin Clip | 2 | TB-30-22 |
| 23 | Connecting Rod | 2 | TB-30-23 |
| 24 | Oil Splasher | 2 | TB-30-24 |
| 25 | Oil Splasher Bolt | 2 | TB-30-25 |
| 26 | 3-Way Connector Pipe | 2 | TB-30-26 |
| 27 | Exhaust Pipe Nut | 1 | TB-30-27 |
| 28 | Elbow Connector Pipe | 1 | TB-30-28 |
| 29 | Intercooler Tube | 1 | TB-30-29 |
| 30 | Bearing Cover Bolt | 1 | TB-30-30 |
| 31 | Bearing Cover Bolt Washer | 4 | TB-30-31 |
| 32 | Front Bearing Cover | 4 | TB-30-32 |
| 33 | Oil Sight Glass Gasket | 1 | TB-30-33 |
| 34 | Oil Sight Glass | 1 | TB-30-34 |
| 35 | Oil Drain Plug | 1 | TB-30-35 |
| 36 | Front Bearing Cover Gasket | 1 | TB-30-36 |
| 37 | Oil Fill Plug Washer | 1 | TB-30-37 |
| 38 | Oil Fill Plug | 1 | TB-30-38 |
| 39 | Crankcase | 1 | TB-30-39 |
| 40 | Front Bearing | 1 | TB-30-40 |
| 41 | Crankshaft | 1 | TB-30-41 |
| 42 | Rear Bearing | 1 | TB-30-42 |
| 43 | Crankshaft Oil Seal | 1 | TB-30-43 |
| 44 | Rear Bearing Cover Gasket | 1 | TB-30-44 |
| 45 | Rear Bearing Cover | 1 | TB-30-45 |
| 46 | Crankcase Breather and O Ring | 1 | TB-30-46 |
| 47 | Rear Cover Bolt Washer | 4 | TB-30-47 |
| 48 | Rear Cover Bolt | 4 | TB-30-48 |
| 49 | Flywheel | 1 | TB-30-49 |
| 50 | Flywheel Cover Washer | 1 | TB-30-50 |
| 51 | Flywheel Lock Washer | 1 | TB-30-51 |
| 52 | Flywheel Bolt | 1 | TB-30-52 |
| 53 | Air Filter Element | 2 | TB-10-43E |
| A | Valve Repair Kit | 1 | TB-30-53 |
