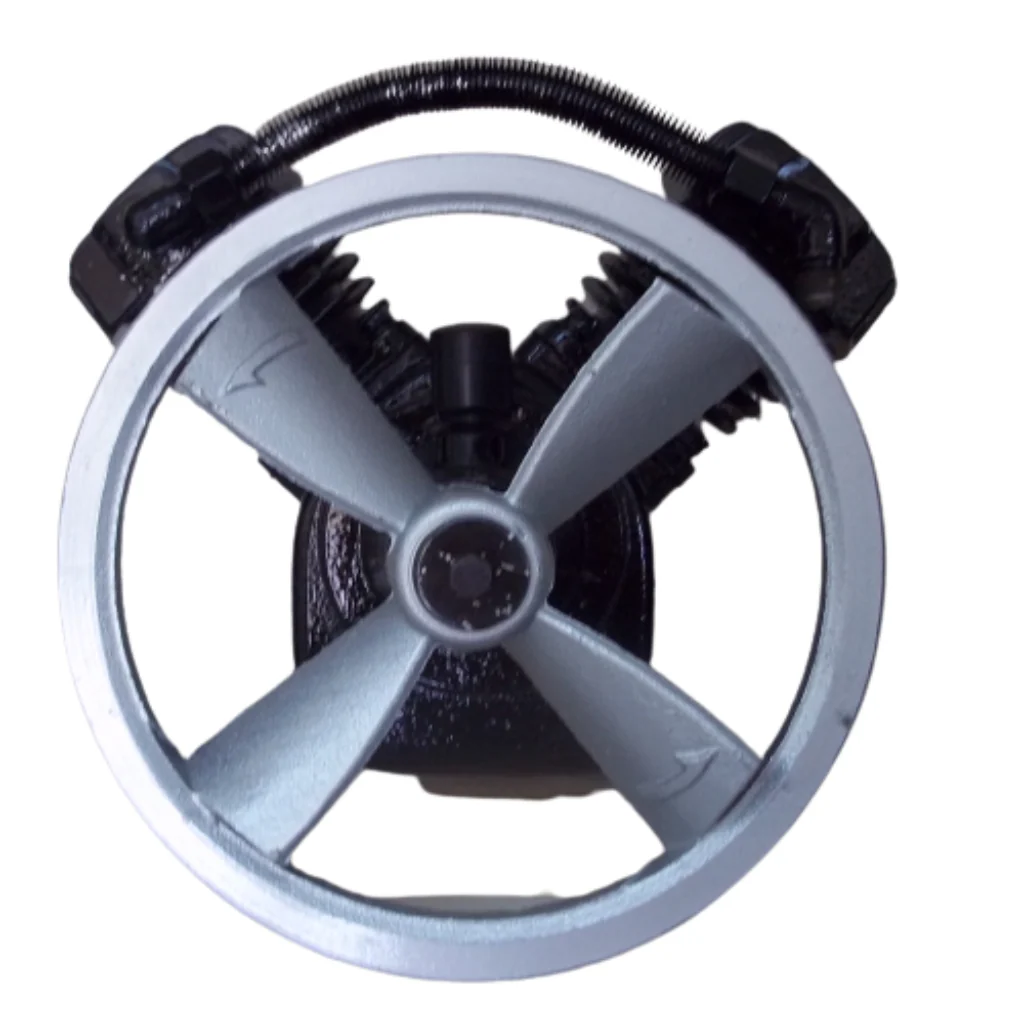

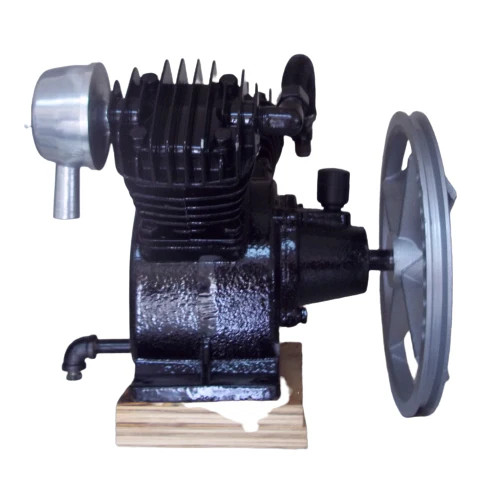

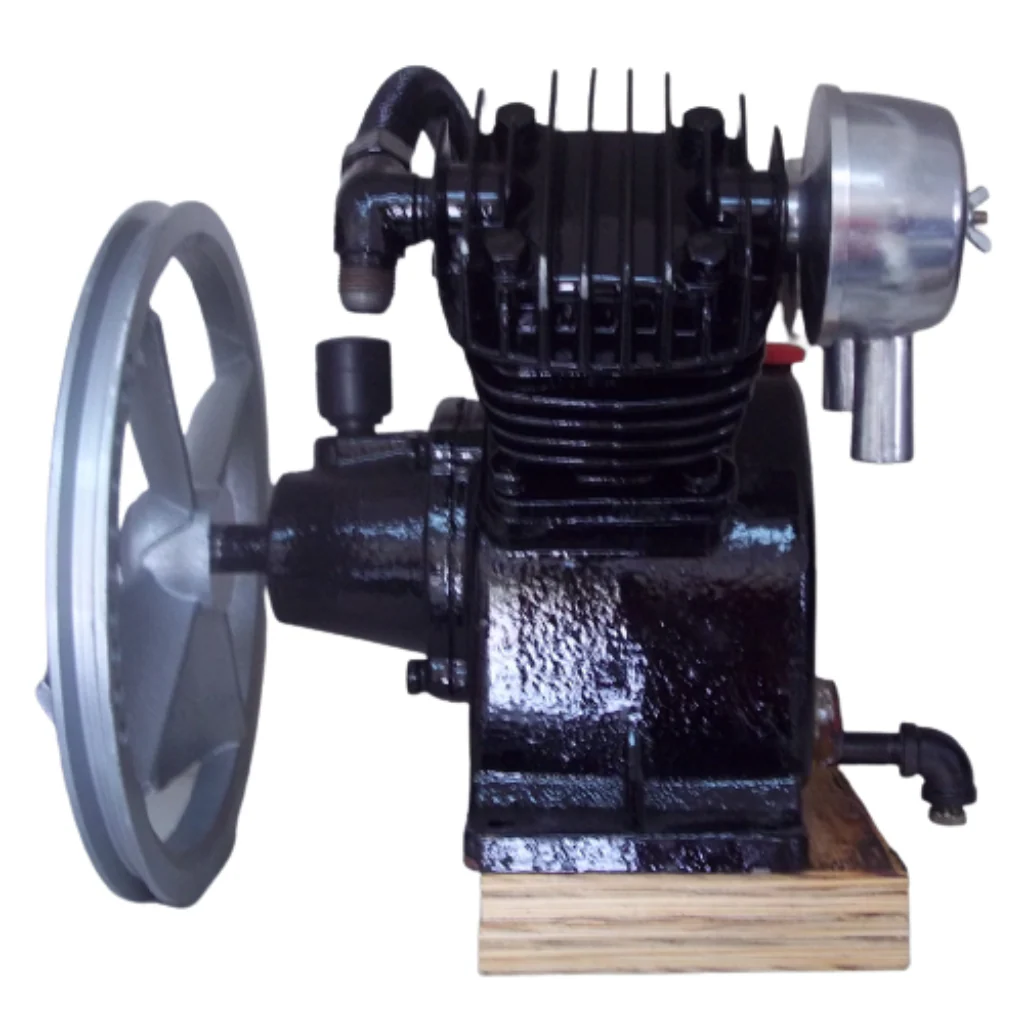

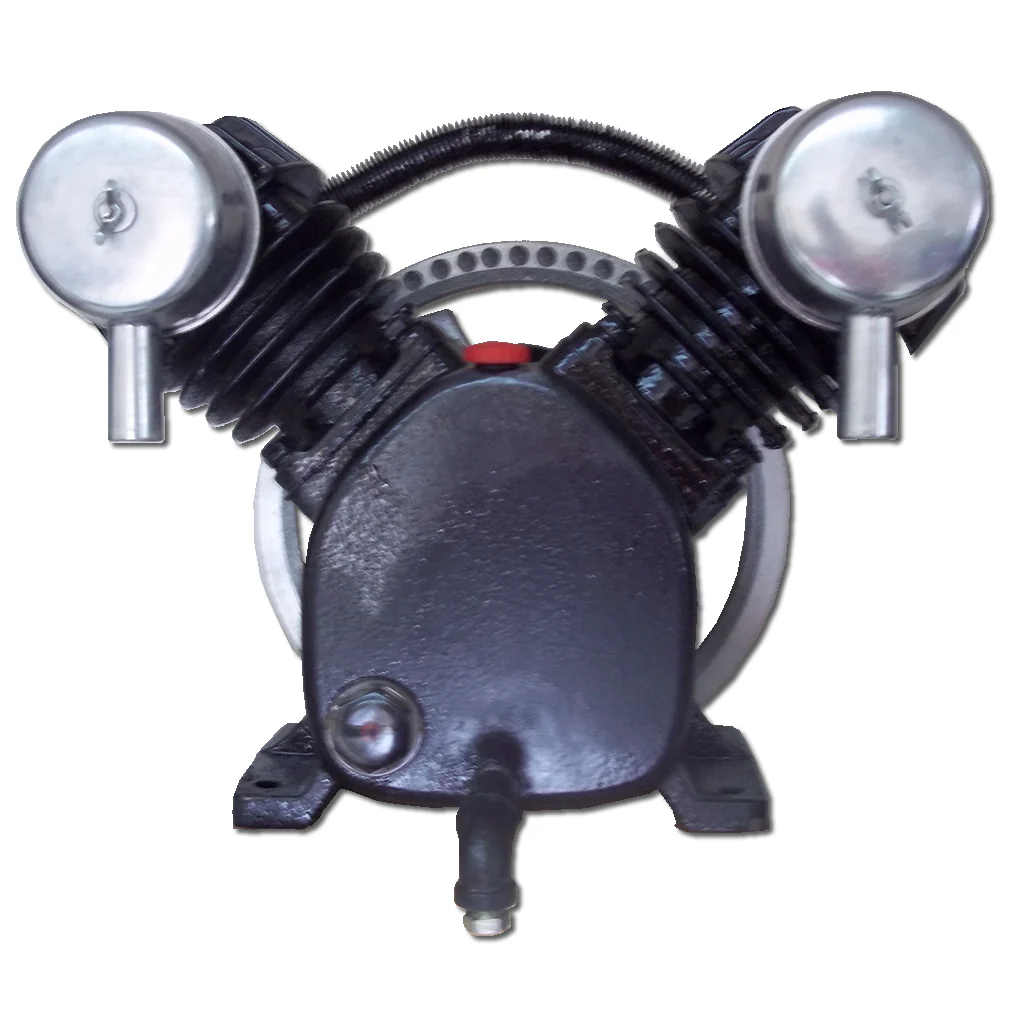

Pump PV01A

• Features:

This was used on the following air compressors pumps from Wood Industries including Iron Horse Air Compressors, Eagle Air Compressors, and MAXair Industrial Air Compressor.

Fits Air Compressor :
MAC3001
P3120H1
P3120H1-XF
P3124V1
P3124V1-XF
TT318E-DV



• SHIPPING DIMENSIONS- 36# 16X15X18

Item	Description	Part Number	Quantity
1	Intake Filter Accessory	51111-5600	2
2	Cylinder Head	51121-0101	2
3	Lift Limiter for Discharge Valve Plate	51121-3102	2
4	Valve Plate	51121-2101	2
5	Valve Plate to Head Gasket	51121-2105	2
6	Discharge Valve Reed	51121-2103	4
7	Valve Plate Screws	50000-2000	8
8	Valve Plate to Cylinder Gasket	51121-2104	2
9	Piston	52121-5101	2
10	Piston Pin	51121-5112	2
11	Piston Pin Snap Ring	51121-5107	4
12	Connecting Rod c/w Dipper	51121-5120	2
13
14	Cylinder	52121-4101	2
15	Oil Filter Cap	51111-4719	1
16	Cylinder to Crankcase Gasket	51121-4103	2
17	Oil Sight Glass c/w Gasket	51111-4770	1
18	Crankcase	51121-4701	1
19	Crankshaft	51121-4601	1
20	Front Bearing	83501-6205	1
21	Rear Bearing	83501-6204	1
22	Crankcase to Rear Bearing Housing Gasket	51121-4704	1
23	Rear Bearing Housing	51121-4703	1
24	Oil Seal	51121-4708	1
25	Crankcase Breather	51111-4761	1
26	Flywheel c/w Fasteners	51121-6601	1
27	Rear Bearing Snap Ring	83610-113025	1
28	Front Bearing Keeper		1
29	Connecting (Interstage) Tubing	51121-7710	1
	Interstage "Y" Fitting	51121-7702	1
	Interstage "Elbow" Fitting	51112-7701	1
	Eagle Oil (350ML or 12oz)	EAOIL10	1
	1/4" Street Elbow (Oil Drain)	STREL1/4	1



Item	Description	Part Number	Quantity
A	Intake Filter Element Kit Includes:	51121-5614C	1
	- 2 Intake Filter Elements Per Pump
B	Valve Repair Kit Includes:	101000-151	2
	Valve Plate to Head Gasket (Item 5)
	2x Discharge Valve Reeds (Item 6)
	Valve Plate Screws (Item 7)
	Valve Plate to Cylinder Gasket (Item 8)
C	Ring Repair Kit Includes:	101000-255	2
	Valve Plate to Head Gasket (Item 5)
	Valve Plate to Cylinder Gasket (Item 8)
	2x Compression Rings
	1x Oil Control Ring
	Cylinder to Crankcase Gasket (Item 16)
D	Valve Plate Assembly (Not Shown)	51121-2100	2
E	Head Unloader Kit Includes:
	Unloader	52122-0120	2
	Unloading Elbow	69926-050101	1
	Unloading Tee	69927-050101	1
	Unloading Tube	TU-1/4-CU	3ft
	Cylinder Head	51121-0101U	2
F	Oil Drain Kit (Not Shown)
